    Automatic Stitcher Single Nail Double Nail Reinforcing Nail 500 Stitch/Min

    Ask Lasest Price
    Brand Name : XINTIAN
    Model Number : XT-2600
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2 Set / Month
    Delivery Time : 30-90days
    • Product Details
    • Company Profile

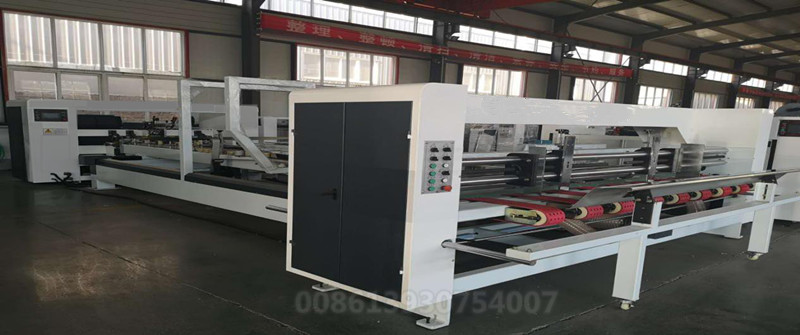

    Automatic Stitcher Single Nail Double Nail Reinforcing Nail 500 Stitch/Min

    QS-2600 Automatic Stitcher


    ModelQS-2600Max.paper size1000×2600mm
    Speed500 stitch/minMin.paper size300×606mm
    Pitch of nails30-120mm(adjustable)Total power10HP
    Number of nails1-99 nail(s)Height of paper feeding900mm
    Type of nailsSingle nail, double nail and reinforcing nailMechanical dimensions

    L:11000mm

    W:2300mm H:1800mm

    Nail line specification2.0mm×(0.65-0.75mm)Weight5 T
    Remark: the external dimension is the dimension of cabinet

    Instructions:

    • Imported double servo drive, accurate accuracy, reduction of mechanical transmission part, can effectively reduce the failure rate of machinery.
    • The stitcher is operated by touch screen, and the parameters (nail distance, nail number, nail type, back baffle) are convenient and quick to change.
    • OMRON PLC control system is used in the whole control system of stitcher
    • All switches in the control box are produced by Taiwan SHIHLIN
    • Bottom mold of automatic stitcher, blade made of German tungsten steel (wear-resistant)
    • The whole set of nail head of stitcher is made of special steel and processed by computer gongs
    • It can be nailed with single nail/ or double nails //at one time, which can meet different requirements of different customers
    • The paper feeding unit is equipped with electric adjustment mechanism
    • Equipped with pneumatic alignment function
    • Electric traverse of main motor
    • The size of carton is adjusted by computer and equipped with fine adjustment system.
    • The paper feeding part,head nail part and back baffle driving part of the stitcher are all driven by servo motor .When adjusting the mechanical rear baffle,it can be operated directly on the touch screen,accurate,convenient and fast,without workers holding a ruler to adjust the size on the machine. It changes the shortcomings of automatic ordinary stitcher,which uses gears and bearings to drove the operation of the machine,reduces the failure rate of the machine,and prolongs the service life .It’s the ideal equipment for the carton factoty.

    Automatic Stitcher Single Nail Double Nail Reinforcing Nail 500 Stitch/Min


    NO.NameBrandOriginNotes
    01Head of machine servo motorYASKAWAJapan
    02Feed paper servo moterYASKAWAJapan
    03PLCOMRONJapan
    04Contactor,intermediate relaySHIHLINTaiwan
    05reducerZhenyuHangzhou2 set
    06reducerZhenyuHangzhou2 set
    07Photoelectric,proximity switchSchneiderFrance
    08Touch screenWEINVIEWTaiwan
    09Circuit breakerSchneiderFrance
    10bearing

    C&U

    Jiangsu
    11group of nail head

    Changping


    Guangdong
    12Frequency converterDeltaTaiwan
    13Cylinder,solenoid valveAirTACTaiwan

    Automatic Stitcher Single Nail Double Nail Reinforcing Nail 500 Stitch/Min
