※Structural features:

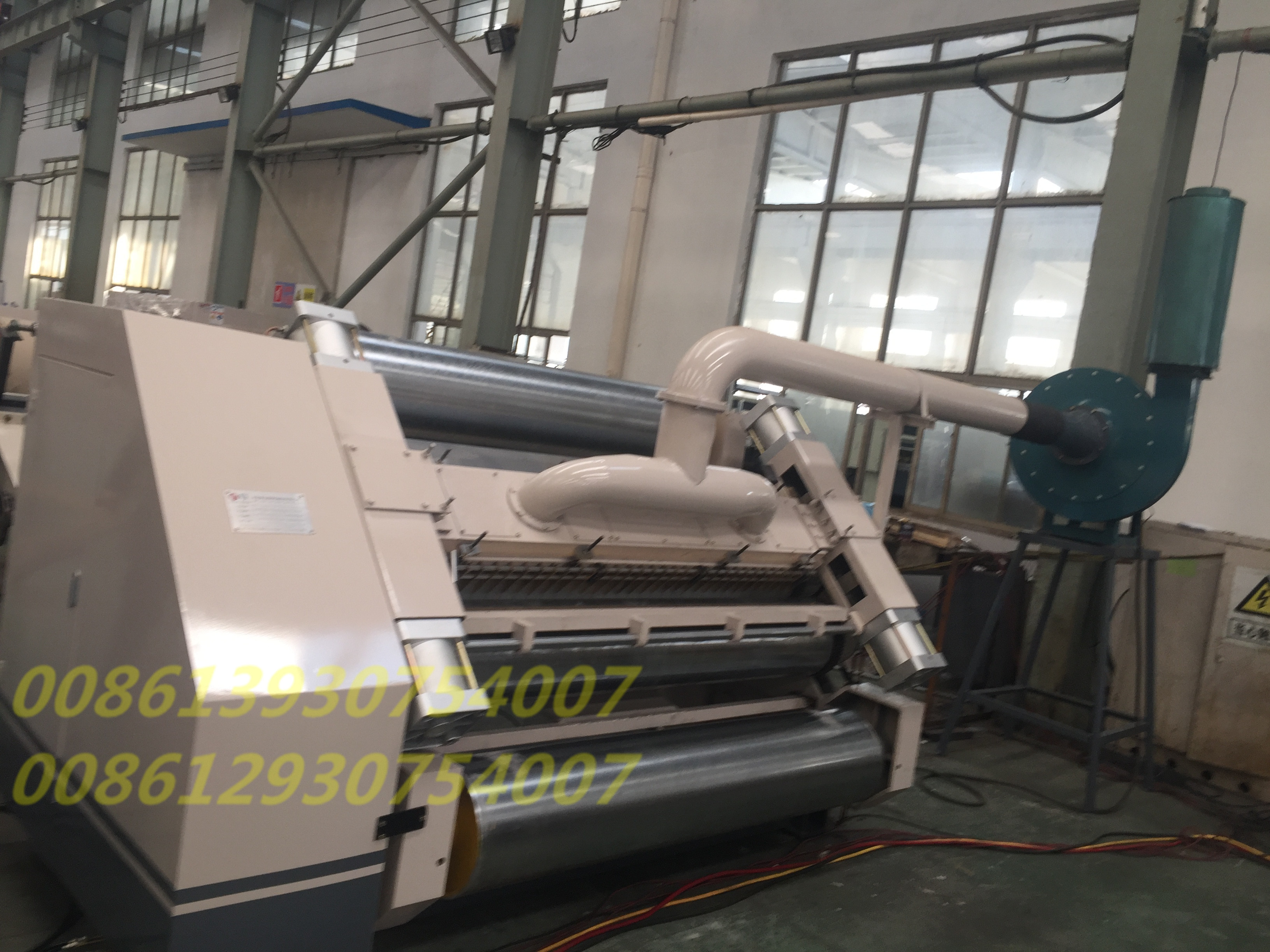

★Using suction hood structure,matches strong high pressure blower.Suction with a silencer.,air source and electrical control focux on the same operation counter,away from the motor is not less than 1.5m,operating side closed full cover.

★base and wallboard cast iron wall,Wallboard thickness130mm.universal Joints.

★corrugated roller material adopt 48CrMoalloy steel,quenched,Laser hardening,Surface finish,main roller of corrugated diameter¢ 280mm,surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.

★pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove

up and down, 45 carbon steel materials, quenching (with cushioning devices).

★pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 25-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.

★Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.

★preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.

※technical parameters:

※roller diameter parameters:

※Powered motor parameters:

※Mainly purchased parts,raw materials and origin:

CangZhou Xin-Tian Packing Machinery Co., ltd is a specialized incorporation that deals with the design and production of carton machinesand is the first one being created in the North carton machinery base in DongGuang. More than twenty years since its creation, the incrop oration is in the leading position in research, production and exploitation.The higher staffs of the incorporation listen carefully and adopt the suggestions and advices from dlients in using the national and international advanced techniques and experiences, and lay stress on the less cost, higher effciency and ecnomical and practical characteristics of products.At present, the incorportion produces various grade products the middle and high speed water-ink printing and slotting machines, to satisfy the needs of different clients.For years, our products sell well and are welcome in China, and a large amount of products have been exported to South-Korea, Russia and South-Eastern Asian countries.The Cardboard Machinery Research Institute has been established as a joint research institution of The Xin-Tian Cardboard Machinery Incorporation and HEBEI Industrial Technology University with the most advanced technology to exploit and produce the intellectual and high efficient modern technical products.

Production Shop

Our Factory's have CNC (8 pcs) ,milling ,drilling,pulse and other procesing machinery to insure produced high quality,precision spare part for our machines.

Wallboard:

We used CAST STEEL not Nodular cast steel.Shrinkage and dispersed shrinkage are not exist in cast stell but has too much in nodular cast steel. Cast stell is expensive than nodular cast steel but tough,dectile and easily machined.Even you cant see the steel's material after painting,but we used good cast steel ,to producted high quality machine is my factory's aim.That's why the machine have been using more than 20 year no problem.

Accessories

We used famous brand accessories for our machinese.

Ceritifaction

Loading

In Exhibition

Service

WHY CHOOSE US:

1.Many years expertise and professional experience in designing and manufacturing.

2.Design and customized according to customers’ requirements.

3.High levels of performance,quality and reliability of all equipments and services.

4.Reliable quality proven by customers both at home and abroad.

5.Reasonable prices without compromising any products efficiency.

6.Promptness in both equipment delivery and technical support pre-and after sales.

7, we have a professional group , every department have the professional work .
