Two Ply Corrugated Sheet Making Equipment Single Facer Production Line 1600mm

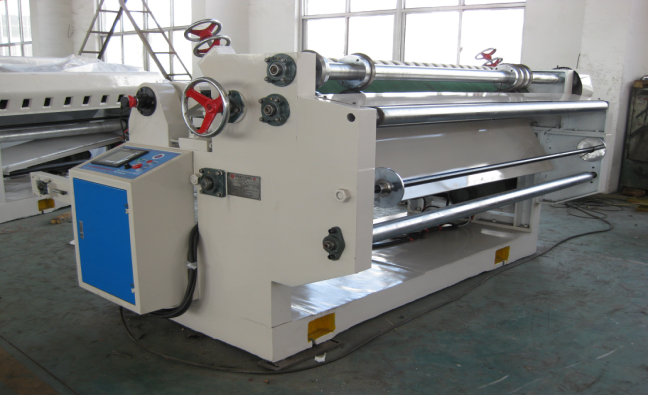

Paper cutter

1)Reasonable mechanical structure, strong rigidity, good stability, strong practical life
2)All operating controls on the same side, easy to operate, photoelectric counting
3)Paper cutting range four knife slitting, crosscutting 400 mm - 2400 mm
4)Paper cutting accuracy: ±2.5 mm

Width: 1300mm, 1450mm, 1600mm

Speed: 0-100m/min

Maximum support weight: 2 ton.

Maximum paper roll diameter: φ 1200mm.

Electric mill roll stand

1) Maximum paper roll diameter: φ 1200mm.

2) Maximum support weight: 2 ton.

3) Adopt single slide symmetrical four arm structure, at the same time support two roll of base paper.

4) Equipped with manual brake disc type, can adjust the tension the base paper.

5) Clamping arm, rotating machinery is equipped with uniform torsion clutch, operate safely and reliably.

Single facer corrugated machine

1)Adopt cover type vacuum absorption, prevent high and low flute, improve the quality of corrugated cardboard, automatic cycle for the glue, corrugated pressure, pneumatic operation, glue coating part can be pneumatic glued.

2) Corrugated roller is made by special alloy steel precision grinding, the whole gears are hardening the hardness can reach HRC55-60.

3) The main shaft is lubricated by high temperature lubrication grease, good seal, and reliable lubrication.

4) Economic speed is 45m; effective width is 1650-1850mm

The above models equipped with double circle or ordinary type for the user to choose from

Paper cutter

1)Reasonable mechanical structure, strong rigidity, good stability, strong practical life
2)All operating controls on the same side, easy to operate, photoelectric counting
3)Paper cutting range four knife slitting, crosscutting 400 mm - 2400 mm
4)Paper cutting accuracy: ±2.5 mm

CangZhou Xin-Tian Packing Machinery Co., ltd is a specialized incorporation that deals with the design and production of carton machinesand is the first one being created in the North carton machinery base in DongGuang. More than twenty years since its creation, the incrop oration is in the leading position in research, production and exploitation.The higher staffs of the incorporation listen carefully and adopt the suggestions and advices from dlients in using the national and international advanced techniques and experiences, and lay stress on the less cost, higher effciency and ecnomical and practical characteristics of products.At present, the incorportion produces various grade products the middle and high speed water-ink printing and slotting machines, to satisfy the needs of different clients.For years, our products sell well and are welcome in China, and a large amount of products have been exported to South-Korea, Russia and South-Eastern Asian countries.The Cardboard Machinery Research Institute has been established as a joint research institution of The Xin-Tian Cardboard Machinery Incorporation and HEBEI Industrial Technology University with the most advanced technology to exploit and produce the intellectual and high efficient modern technical products.

Production Shop

Our Factory's have CNC (8 pcs) ,milling ,drilling,pulse and other procesing machinery to insure produced high quality,precision spare part for our machines.

Wallboard:

We used CAST STEEL not Nodular cast steel.Shrinkage and dispersed shrinkage are not exist in cast stell but has too much in nodular cast steel. Cast stell is expensive than nodular cast steel but tough,dectile and easily machined.Even you cant see the steel's material after painting,but we used good cast steel ,to producted high quality machine is my factory's aim.That's why the machine have been using more than 20 year no problem.

Accessories

We used famous brand accessories for our machinese.

Ceritifaction

Loading

In Exhibition

Service

WHY CHOOSE US:

1.Many years expertise and professional experience in designing and manufacturing.

2.Design and customized according to customers’ requirements.

3.High levels of performance,quality and reliability of all equipments and services.

4.Reliable quality proven by customers both at home and abroad.

5.Reasonable prices without compromising any products efficiency.

6.Promptness in both equipment delivery and technical support pre-and after sales.

7, we have a professional group , every department have the professional work .
