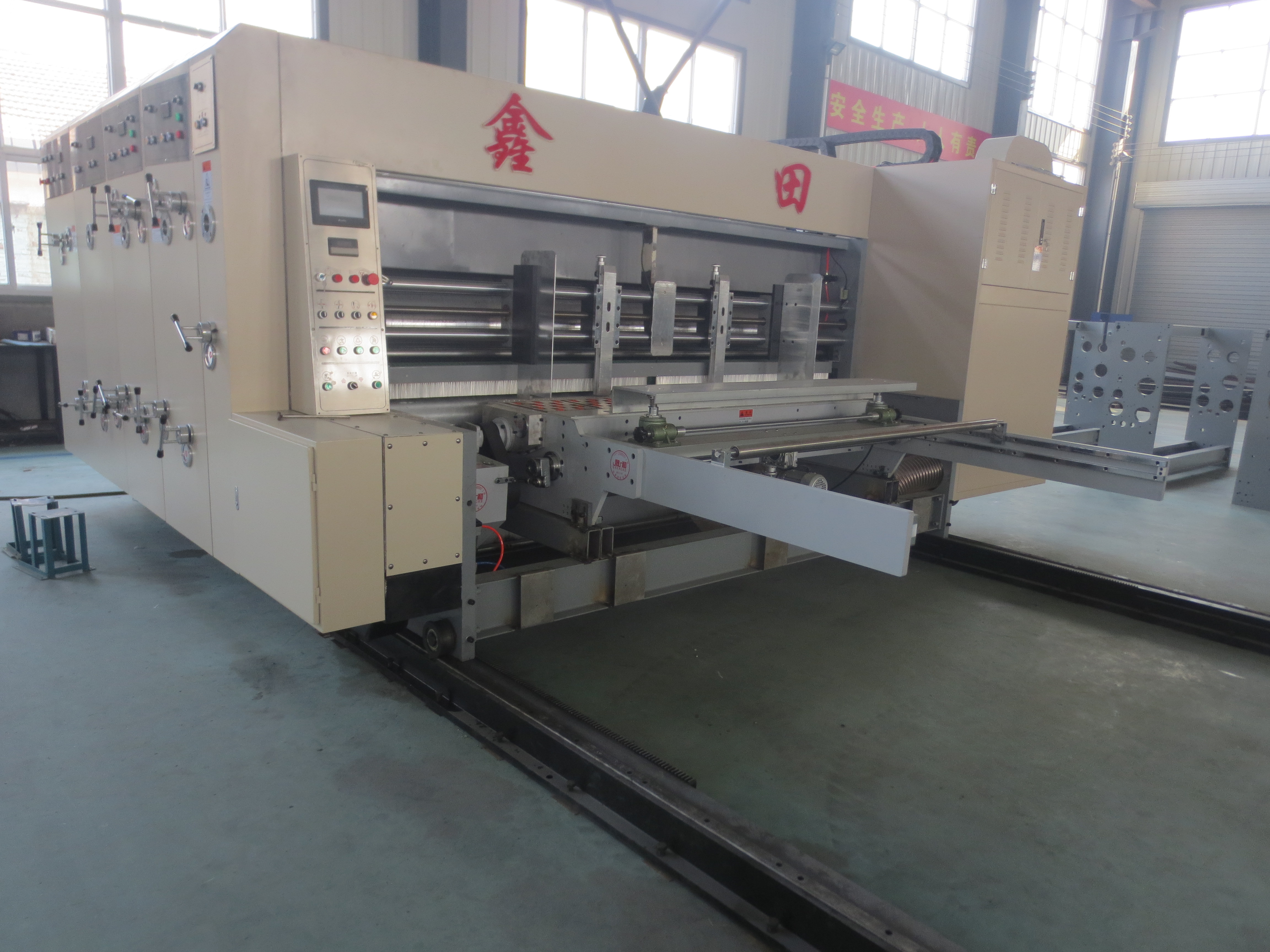

Corrugated Carton Printing Slotting Die Cutting Machine with Vacuum Adsorption

Functions and Features:

• Whole machine electric parts are domestic famous brand with good and steady quality

• Tempering is used to decrease metal internal force in complete machine baffles and key parts, and these parts are made by high-precision processing center and grinded by numeric-control grinder.

• All the transmission axles and rollers are made by high-quality steel, and processed by tempering and dynamic balance, plated with rigid chrome and grinded surface

• All the transmission gears are made by the 45# alloy steel, and are grinded after heat-treatment, which maintains high topping precision

• The whole machine adopts spray lubrication, equipped with double oil pipe balance system.

• Optional equipments: presetting adjustment function, feeding, printing, slotting, all featuring automatic zero setting and memory reposition

• Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient

• Vacuum adsorption, kick or lead edge feeding to customers’ request

Option: Ceramic anilox roller and stacker Machine

Main technical parameter

Function of Feeding Department:
● Electrically controlled the connecting and separated for the even/ unit with alarm to ensure the operator safety during its proceeding.
● The left and right baffle,kick feeding,back baffle was adopted electric adjustment;
● Brush and the top suction device at the inlet which can clear away the impurity from the paper face to improve the printing quality;
● Mainframe was controlled by the frequency conversion ,start-up and running steady,which can save the power about the 30%;
● Infrared photoelectricity counter can presetting the order paper quantity;
● One lock function for whole machine ,which can avoid the damaged the machine with error operation (Main motor start running ,every unit will be lock automatic);
● Pressure model elasticity feeding rubber roller,which can not to damaged the strength for corrugated cardboard;
● Option: outside baffle add the flap function,which made the cardboard orientation more exact,avoid to waste.
Option:kick feeding paper or lead edge feeding paper.

Function of Slotting Department:
●Slotting phases was adopted the planetary gear structure, the electric digit 360 adjustnent,show the dgt(stop, running can adjustment);
●Slotting tool rest pressure wheel horizontal move by electric mechanic joint adjustment;
●The height of box size was adjustment synchronous;
●Pressure interval was used the free-spanner self-lock worm wheel and worm device adjustment and fix;
●The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
●Slotting knife was choice with the high quality alloy steel,which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used.
●It could be equipped with portable punching die holder.
●Option: Computer double shaft slotting adjustment.

Function of Die Cutting Department:

●The die cutter phase is controlled by computer and electric digit.
●The die cutting scraper could be adjusted horizontally with manual control ranging from 10mm.
●The glue roller cuts the trimming mechanism and the cushion could be used for many times and save the use cost to a great deal.
●The cushion roller mechanical, horizontal and facility from + 30mm to -30mm could raise the service life of The cushion of the die-cutting.
●Used the die cutting equalizer, providing wire-speed compensation, be ensure the carton forming same size after repair the rubber.
Option: Contain slotter circle blade.

CangZhou Xin-Tian Packing Machinery Co., ltd is a specialized incorporation that deals with the design and production of carton machinesand is the first one being created in the North carton machinery base in DongGuang. More than twenty years since its creation, the incrop oration is in the leading position in research, production and exploitation.The higher staffs of the incorporation listen carefully and adopt the suggestions and advices from dlients in using the national and international advanced techniques and experiences, and lay stress on the less cost, higher effciency and ecnomical and practical characteristics of products.At present, the incorportion produces various grade products the middle and high speed water-ink printing and slotting machines, to satisfy the needs of different clients.For years, our products sell well and are welcome in China, and a large amount of products have been exported to South-Korea, Russia and South-Eastern Asian countries.The Cardboard Machinery Research Institute has been established as a joint research institution of The Xin-Tian Cardboard Machinery Incorporation and HEBEI Industrial Technology University with the most advanced technology to exploit and produce the intellectual and high efficient modern technical products.

Production Shop

Our Factory's have CNC (8 pcs) ,milling ,drilling,pulse and other procesing machinery to insure produced high quality,precision spare part for our machines.

Wallboard:

We used CAST STEEL not Nodular cast steel.Shrinkage and dispersed shrinkage are not exist in cast stell but has too much in nodular cast steel. Cast stell is expensive than nodular cast steel but tough,dectile and easily machined.Even you cant see the steel's material after painting,but we used good cast steel ,to producted high quality machine is my factory's aim.That's why the machine have been using more than 20 year no problem.

Accessories

We used famous brand accessories for our machinese.

Ceritifaction

Loading

In Exhibition

Service

WHY CHOOSE US:

1.Many years expertise and professional experience in designing and manufacturing.

2.Design and customized according to customers’ requirements.

3.High levels of performance,quality and reliability of all equipments and services.

4.Reliable quality proven by customers both at home and abroad.

5.Reasonable prices without compromising any products efficiency.

6.Promptness in both equipment delivery and technical support pre-and after sales.

7, we have a professional group , every department have the professional work .
