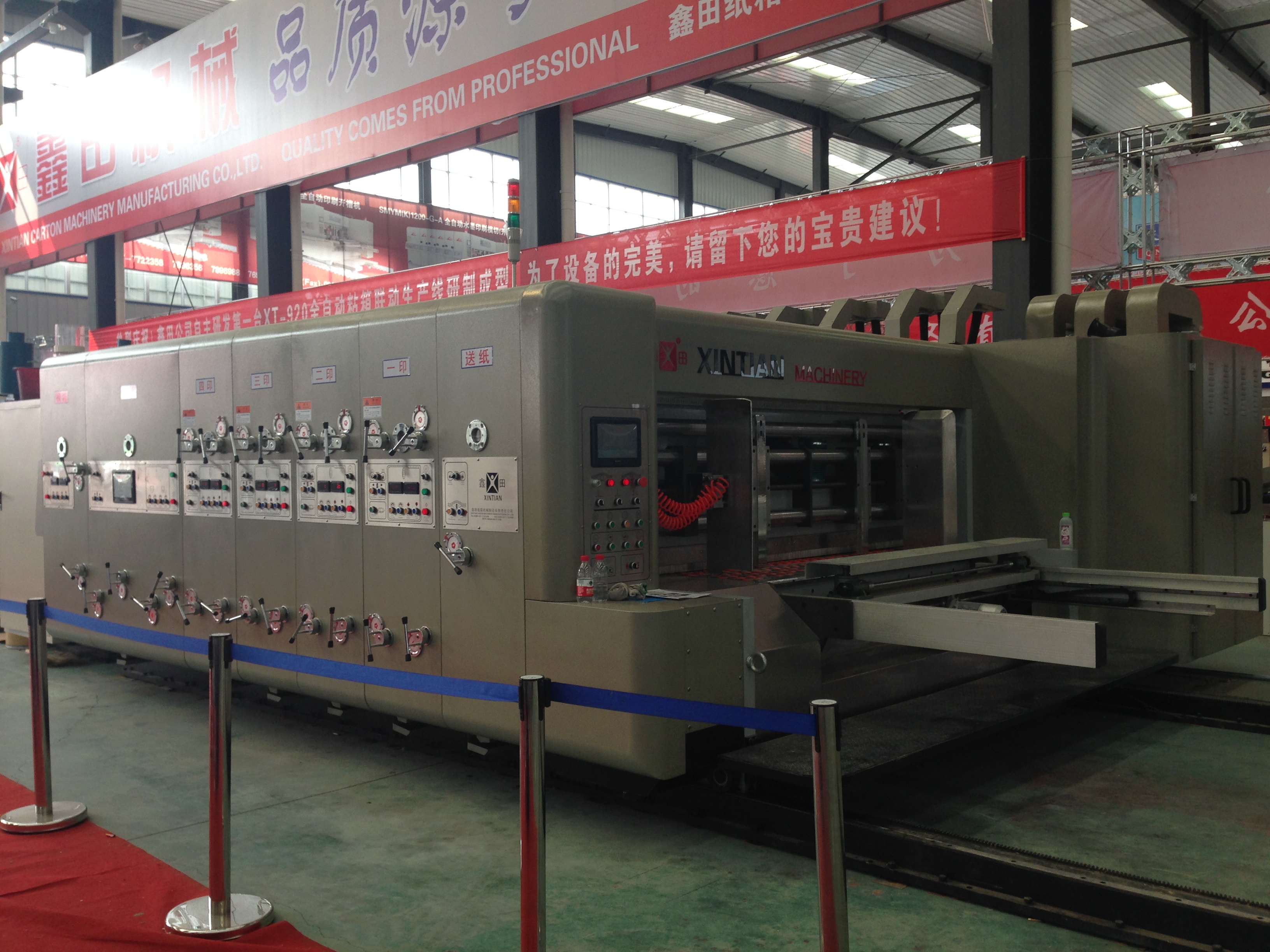

Fully Automatic Inline Flexo Ink Printer Slotter Die Cutter with
Folder Gluer Bundler Machine
Folding part:
1, The upper and down conveyor clamping the cardboard to move
forward, the cardboard inlet interval,
as well as upper and down conveyor interval all adjusted
electrically.
2, Paper entering section adopts spring pressure wheel to load
cardboard, limit device is equipped in the
pressure wheel, and the interval between the wheel and down
conveyor can be adjusted independently,
make sure high paper feeding precision.
3, The middle part is equipped with secondary ballast device, make
sure the folding precision.
4, The back part adopts vaccum suction belt to convey cardboard, in
case the cardboard slide away and
two folding parts are not joint together completely.
5,The back part is equipped with down folding belt, whose speed is
faster than the upper folding belt, the
friction of the down belt movement will offset the resistance
produced by folding cardboard, to reduce problem
that the two folding parts of the cardboard are not joint together
completely.
6, The back part adopts rounder tower forming folding method, make
the cardboard folding precision well
controlled and the forming carton box with good shape.
7, The movement of the crossbeam adjusted by electrically.
Motor part:
1, Main motor adopts variable frequency motor, synchronized with
the flexo printer.
2, American Gates Timing Belt is used, with high transmission
precision and low noisy.
3, Strong wind pressure device prevents the forming carton box
upturned, and the wind direction can be
adjusted, make sure staking tidy.
4, High speed shaping and flapping device do the last revise to the
forming carton box.
Count and discharge part:
1, Photoelectric switch counting, three units servo motors
cooperated to make sure the precise counting
under high speed running, accurate and reliable batch with little
impact.
2, Pneumatic paper pushing structure to push out the counted carton
box neatly.
3, Back baffle can be adjusted electrically as per the cardboard
width.
4, Moving parts adopts imported ball screw and linear guides with
reliable stability.
5, Equipped with paper pressure device, upper and down transmission
is the same speed ensures carton
box neatly, the height can be adjusted electrically as per the
different quantity of each pack of the carton box.
6, The left and right position of the discharge part can be
adjusted, which ensures the carton box always
falling down to the middle part of the machine.
Technical parameter(standard size):
Mechanical speed: 300 pieces/min(as per specific condition)
Main motor power: 18.5KW
Glue method: gluing
Machine length: 11.5m
Max.cardboard: 900x2000mm
Min.cardboard: 300x800mm.
