1450mm Carton Box Corrugated Paper Board Flute Laminator Machine

Description:

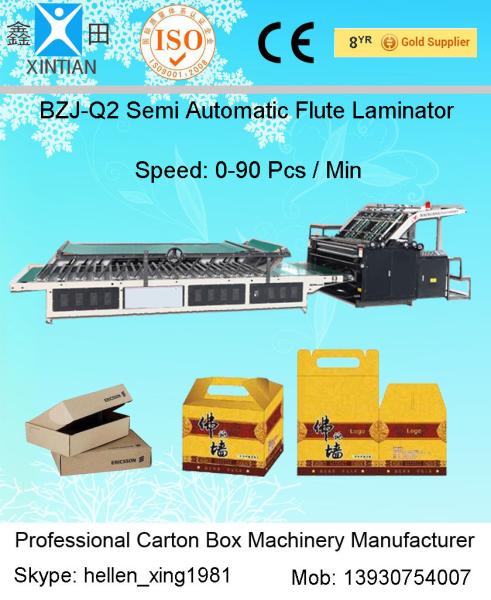

Performance of the machine:Automatic Flute Laminator

●BZJ Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system make this series of machine fit a larger of paper,high precision while remaining the features of easy operation and maintenance.

●The core designed rubber roller together with knurled steel roller enhances the evenness of gluing,strength of stickiness,as well as lowering the production cost.

●Balance-tested rollers,tight assembling technique,plus timing and tooth belt driving mechanic system makes the machine run at low noise with high precision.

●The machine adopts automatic glue supply and recyclable glue circulating system.

●Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and Performance of the machine:stable.The electric parts used are all world wide available brand or well-known Chinese brand.

●All material are inspected according to ISO-9001 standard and key parts such as the harmonic gear and bearings are imported ones.

●The bottom sheet for this machine can be A,B,C,D,E,F flute corrugated sheet.It can do 3 or 5 ply board to sheet lamination or board to board lamination.The range for top paper can be 200-600 GSM with top paper advance or alignment function.

Main chracteristics:

Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam.
Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional).
Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet.

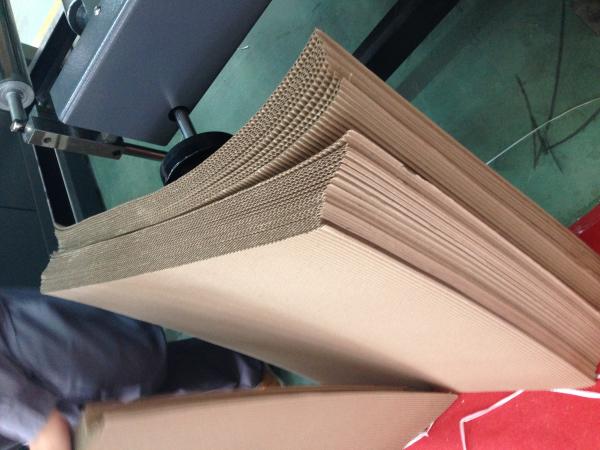

Bottom sheet can be paperboard more than 350gsm,A/B/C/D/E/F corrugated cardboard.
Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.
Using hight-precision plastic block device,sace glue.

Main technical parameters:

CangZhou Xin-Tian Packing Machinery Co., ltd is a specialized incorporation that deals with the design and production of carton machinesand is the first one being created in the North carton machinery base in DongGuang. More than twenty years since its creation, the incrop oration is in the leading position in research, production and exploitation.The higher staffs of the incorporation listen carefully and adopt the suggestions and advices from dlients in using the national and international advanced techniques and experiences, and lay stress on the less cost, higher effciency and ecnomical and practical characteristics of products.At present, the incorportion produces various grade products the middle and high speed water-ink printing and slotting machines, to satisfy the needs of different clients.For years, our products sell well and are welcome in China, and a large amount of products have been exported to South-Korea, Russia and South-Eastern Asian countries.The Cardboard Machinery Research Institute has been established as a joint research institution of The Xin-Tian Cardboard Machinery Incorporation and HEBEI Industrial Technology University with the most advanced technology to exploit and produce the intellectual and high efficient modern technical products.

Production Shop

Our Factory's have CNC (8 pcs) ,milling ,drilling,pulse and other procesing machinery to insure produced high quality,precision spare part for our machines.

Wallboard:

We used CAST STEEL not Nodular cast steel.Shrinkage and dispersed shrinkage are not exist in cast stell but has too much in nodular cast steel. Cast stell is expensive than nodular cast steel but tough,dectile and easily machined.Even you cant see the steel's material after painting,but we used good cast steel ,to producted high quality machine is my factory's aim.That's why the machine have been using more than 20 year no problem.

Accessories

We used famous brand accessories for our machinese.

Ceritifaction

Loading

In Exhibition

Service

WHY CHOOSE US:

1.Many years expertise and professional experience in designing and manufacturing.

2.Design and customized according to customers’ requirements.

3.High levels of performance,quality and reliability of all equipments and services.

4.Reliable quality proven by customers both at home and abroad.

5.Reasonable prices without compromising any products efficiency.

6.Promptness in both equipment delivery and technical support pre-and after sales.

7, we have a professional group , every department have the professional work .
