Use and characteristics:

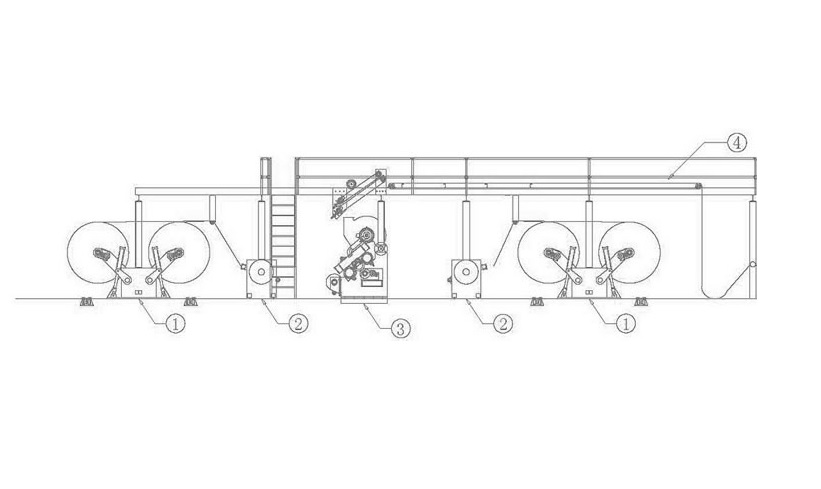

The hydraulic paper mill roll stand is the place where the corrugated medium is placed. It takes advantage of oil pressure to lift and move corrugated medium. Its position in the WJ computer high speed corrugated cardboard production line can be seen in diagram ① and that in HS high speed corrugated cardboard single sheet production line can be shown in diagram ①.

Features
1. With a symmetrical structure, the hydraulic paper mill roll stand can be installed with two rolls of corrugated medium simultaneously. In this way, paper can be easily changed without stopping the machine.
2. The hydraulic driving system is able to achieve lifting, tightly clamping, loosening and aligning of corrugated medium.
3. The clamping head features an expansion design.
4. The tension is pneumatic braking controlled. In addition, it can also be made under on-line control together with the paper splicer.
5. Our hydraulic paper mill roll stand is equipped with two sets of paper feeding trolleys which push corrugated medium to the given position from two sides in a portable and flexible way.
6. The semi-closed track is entirely buried. Its main structure is welded with the 16# channel steel for firmness and durability.

Technical Specifications
Hydraulic Paper Mill Roll Stand
Work width:1400mm-2000mm
Available paper dia:Φ1500mm
Braking:single-point, double-point and multi-point

Hydraulic Paper Mill Roll Stand
Work width:2200mm-2800mm
Available paper dia:Φ1600mm
Braking:double-point and multi-point

A

CangZhou Xin-Tian Packing Machinery Co., ltd is a specialized incorporation that deals with the design and production of carton machinesand is the first one being created in the North carton machinery base in DongGuang. More than twenty years since its creation, the incrop oration is in the leading position in research, production and exploitation.The higher staffs of the incorporation listen carefully and adopt the suggestions and advices from dlients in using the national and international advanced techniques and experiences, and lay stress on the less cost, higher effciency and ecnomical and practical characteristics of products.At present, the incorportion produces various grade products the middle and high speed water-ink printing and slotting machines, to satisfy the needs of different clients.For years, our products sell well and are welcome in China, and a large amount of products have been exported to South-Korea, Russia and South-Eastern Asian countries.The Cardboard Machinery Research Institute has been established as a joint research institution of The Xin-Tian Cardboard Machinery Incorporation and HEBEI Industrial Technology University with the most advanced technology to exploit and produce the intellectual and high efficient modern technical products.

Production Shop

Our Factory's have CNC (8 pcs) ,milling ,drilling,pulse and other procesing machinery to insure produced high quality,precision spare part for our machines.

Wallboard:

We used CAST STEEL not Nodular cast steel.Shrinkage and dispersed shrinkage are not exist in cast stell but has too much in nodular cast steel. Cast stell is expensive than nodular cast steel but tough,dectile and easily machined.Even you cant see the steel's material after painting,but we used good cast steel ,to producted high quality machine is my factory's aim.That's why the machine have been using more than 20 year no problem.
