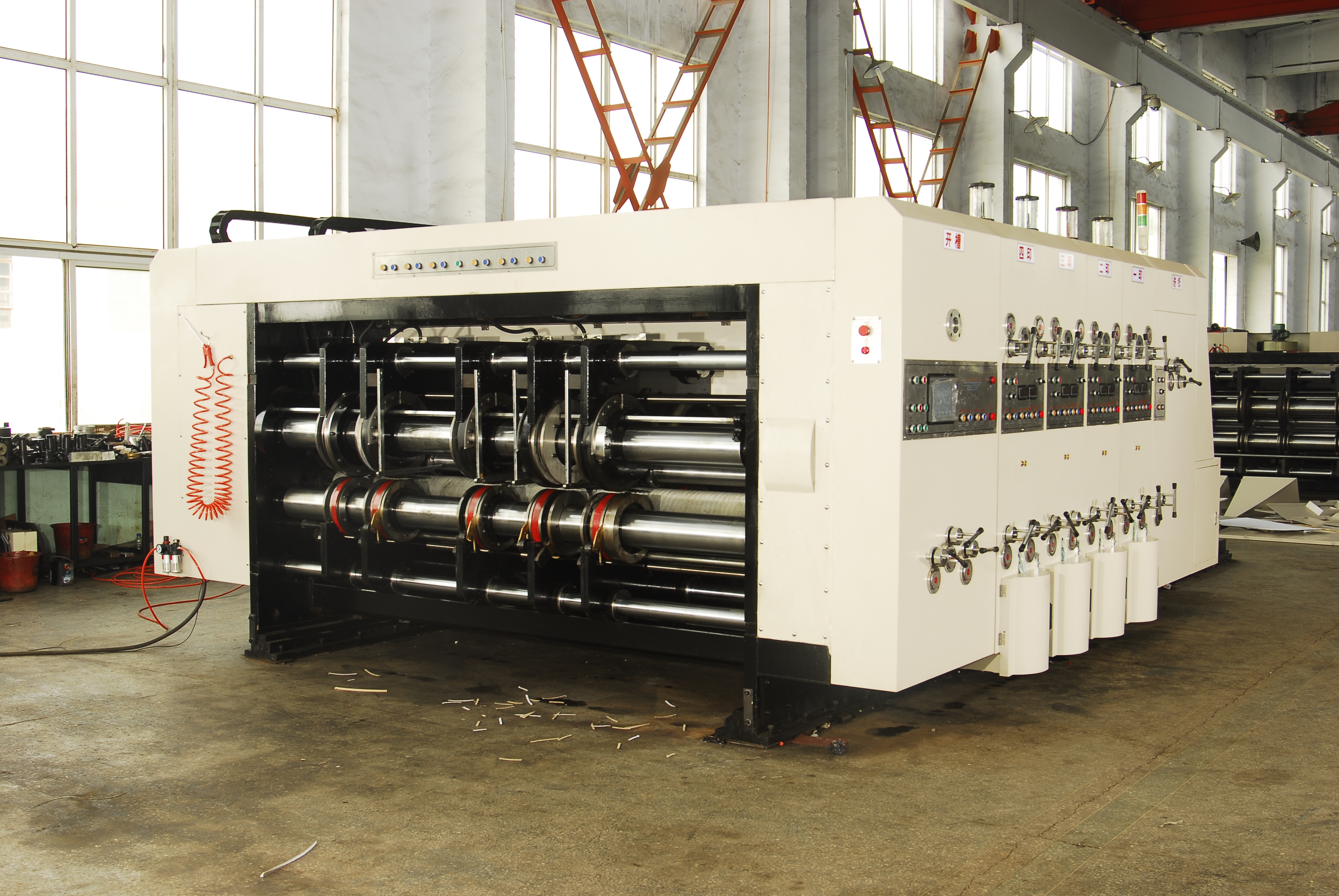

High Speed Corrugated Carton Making Machine , Frequency Conversion
Control
Functions and features:
l International famous brand electric parts and computer software
are used in the whole machine with
stable and reliable quality; human-computer interface, computer
order storage, convenient operation and faster order update.(It can
prestore 999 orders in the computer.)
l Complete machine baffle and important parts use tempering to
decrease the metal internal force;
and all parts are made by high-precision processing center and
grinded by numerical -control grinder.
l All transmission axles and rollers are made by high-quality
steel, and processed through tempering
and dynamic balance; plated with rigid chrome and grinded surface.
l All transmission gears are made by 20CrMnTi alloy steel, which is
grinded after heat-treatment, rigidity HRC58-62,and which is made
by rubbing,6 grade precision to maintain high topping precision
after
long using.
l All transmission parts (connected with the axles and gears) adopt
the hand-free connecting ring to
eliminate the interval, suitable for long-term high-speed running.
l All transmission bearings adopt strengthened model bearing,
equipped with dustproof windtight parts
and the oiling, handy to maintenance, lasting for longer using.
l The whole machine undergoes automatic spray lubrication, with
intuitionistically showing facilities
and double oil pipe balance system.
l The whole machine runs with the adjustment presetting function,
feeding, printing, slotting, die
cutting all featuring auto- zeroing and memory automatic
reposition.
l The whole machine working interval adjustment adopts fast
spanner-free adjustment and the electromagnetic brake system with
the worm wheel and worm setting operates fast and conveniently.
l The mainframe chooses control by frequency conversion, with more
stable and energy-saving for start-up and running.
l Option for the vacuum adsorption, kick feeding or leading edge
feeding.
Optional equipments: ceramic anilox roller, leading edge feeding
system, remote computer diagnosis system, stacker.
Main Technical Parameter
SERIAL | WYAZS | UNIT | WYAZS |
1200×2000/2400 | 1400×2000/2400 | 1500×2400/2800 |
1 | Inboard width | mm | 2400 | 2800 | 2400 | 2800 | 2800 | 3200 |
2 | Max.coverage size | mm | 1270×2200 | 1270×2600 | 1470×2200 | 1470×2600 | 1570×2600 | 1570×3000 |
3 | Min.coverage size | mm | 320×640 | 320×640 | 380 ×720 | 380×720 | 450×800 | 450×800 |
4 | Max.printing area | mm | 1200×2000 | 1200×2400 | 1400×2000 | 1400×2400 | 1500×2400 | 1500×2800 |
5 | Skip feeding | mm | 1450×2000 | 1450×2400 | 1650×2000 | 1650×2400 | 1750×2400 | 1750×2800 |
6 | Thickness of printing plate | mm | 7.2 | 7.2 | 7.2 |
7 | Max.speed | Pieces /min | 150 | 140 | 120 |
8 | Economic speed | Pieces/ min | 120 | 120 | 100 |
9 | Topping precision | mm | Four color ±0.5 | Four color ±0.5 | Four color ±0.5 |
10 | Slotting precision | mm | ±1.5 | ±1.5 | ±1.5 |
11 | Max.slotting depth | mm | 300 | 350 | 390 |
12 | Min.slotting interval | mm | Clockwise: 160×160×160×160 260×60×260×60 | Clockwise: 180×180×180×180 280×80×280×80 | Clockwise: 200×200×200×200 280×80×280×80 |
13 | power | Kw | 18.5-30 | 18.5-30 | 18.5-30 |
14 | Size for whole machine | mm | 13600×4500 ×3200 | 13600×4800 ×3200 | 13600×4500 ×3200 | 13600×4800 ×3200 | 13600×4800 ×3200 | 13600×500 ×3200 |
15 | Weight | T | 22-25 | 25-28 | 24-27 | 27-30 | 26-29 | 29-32 |
