Brand Name : | XINTIAN |
Certification : | CE,ISO9001:2000 |
Price : | $12000 |
Delivery Time : | 30-60days |
Payment Terms : | T/T or L/C |
Supply Ability : | 10 SET/MONTH |
Model Number : | BZX |

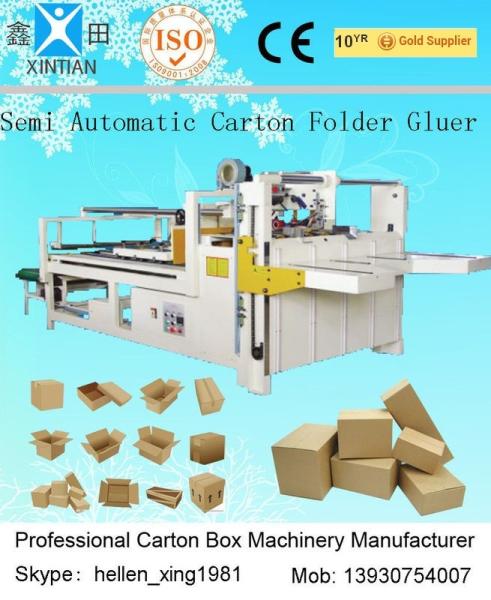

20CrMnTi Energy - Saving Carton Machinery
Main characteristic:
1. This machine suit for folding and gule all the kind of
paperboard , easy operation ,no training is necessary , one minute
quick order change ,carton gluer min size 260mm, it is the best
choice for carton making factory .
2. BZX2800 Type Semi-Auto Guler compose of main form and two small
conveyer, Main form including : Form, Up and Down Working Table,
Forepart feeding section, forepart profread section, middle
transportation section, Middle press section, side carton delivery
section, Electric control system,
3. This machine adopt name brand import electric spare parts ,
siemens electric ,omron photoelectrictiy switch Japan TOKY counter
,Taiwan MINGWEI electric power supply Gluer head adopt special
alloy material anti-acidity and anti-alkalescence, to keeping the
gluer head for long life , Main motor asopt TaiWan Chengpang motor.
WYAZS NAME | BZX2800 |
Max. size (L+W)×2 | 2800㎜ |
Min. size (L+W)×2 | 340㎜ |
Max. size (W+H)×2 | 1515㎜ |
Min. size (W+H)×2 | 260㎜ |
High of feeder | 1000㎜ |
Power | 4kw |
Machine length | 5300㎜ |
Machine weight | 2150㎏ |
Machine speed | 60m/min |
![]() |
