Brand Name : | XINTIAN, SINCERITY |
Certification : | CE,ISO9001:2000 |
Model Number : | XT-G |
Price : | $10000-$250000 |
Delivery Time : | 30-90days |
Payment Terms : | T/T or L/C |
Supply Ability : | 5 SET/MONTH |

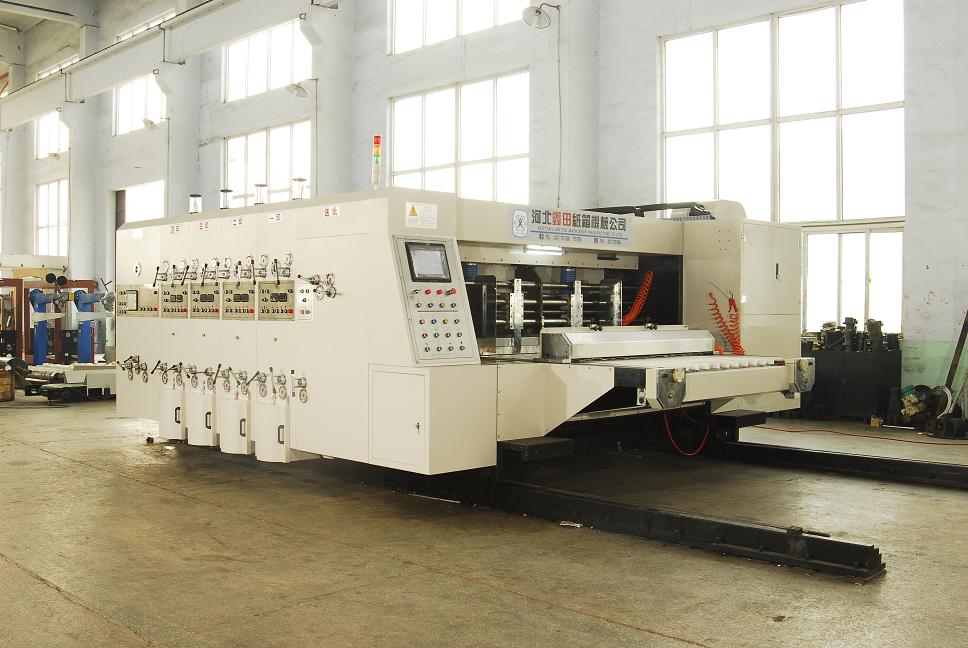

Paper Cardboard Corrugated Carton Folding Machine 3200mm , High Topping Precision
Functions and features:
1. International famous brand electric parts and computer software
are used in the whole machine with stable and reliable quality;
human-computer interface, computer order storage, convenient
operation and faster order update.(It can prestore 999 orders in
the computer.)
2. Complete machine baffle and important parts use tempering to
decrease the metal internal force; and all parts are made by
high-precision processing center and grinded by numerical -control
grinder.
3. All transmission axles and rollers are made by high-quality
steel, and processed through tempering and dynamic balance; plated
with rigid chrome and grinded surface.
4. All transmission gears are made by 20CrMnTi alloy steel, which
is grinded after heat-treatment, rigidity HRC58-62,and which is
made by rubbing,6 grade precision to maintain high topping
precision after long using.
5. All transmission parts (connected with the axles and gears)
adopt the hand-free connecting ring to eliminate the interval,
suitable for long-term high-speed running.
6. All transmission bearings adopt strengthened model bearing,
equipped with dustproof windtight parts and the oiling, handy to
maintenance, lasting for longer using.
7. The whole machine undergoes automatic spray lubrication, with
intuitionistically showing facilities and double oil pipe balance
system.
8. The whole machine runs with the adjustment presetting function,
feeding, printing, slotting, die cutting all featuring auto-
zeroing and memory automatic reposition.
9. The whole machine working interval adjustment adopts fast
spanner-free adjustment and the electromagnetic brake system with
the worm wheel and worm setting operates fast and conveniently.
10. The mainframe chooses control by frequency conversion, with
more stable and energy-saving for start-up and running.
11. Option for the vacuum adsorption, kick feeding or leading edge
feeding.
Optional equipments: ceramic anilox roller, leading edge feeding system, remote computer diagnosis system, stacker.
Main Technical Parameter
SERIAL | WYAZS | UNIT | WYAZS | |||||
1200×2000/2400 | 1400×2000/2400 | 1500×2400/2800 | ||||||
1 | Inboard width | mm | 2400 | 2800 | 2400 | 2800 | 2800 | 3200 |
2 | Max.coverage | mm | 1270× | 1270× | 1470× | 1470× | 1570× | 1570× |
3 | Min.coverage | mm | 320× | 320× | 380 ×720 | 380× | 450× | 450× |
4 | Max.printing | mm | 1200× | 1200× | 1400× | 1400× | 1500× | 1500× |
5 | Skip feeding | mm | 1450× | 1450× | 1650× | 1650× | 1750× | 1750× |
6 | Thickness of | mm | 7.2 | 7.2 | 7.2 | |||
7 | Max.speed | Pieces/min | 150 | 140 | 120 | |||
8 | Economic speed | Pieces/min | 120 | 120 | 100 | |||
9 | Topping precision | mm | Four color | Four color | Four color | |||
10 | Slotting precision | m m | ±1.5 | ±1.5 | ±1.5 | |||
11 | Max.slotting | mm | 300 | 350 | 390 |
![]() |
