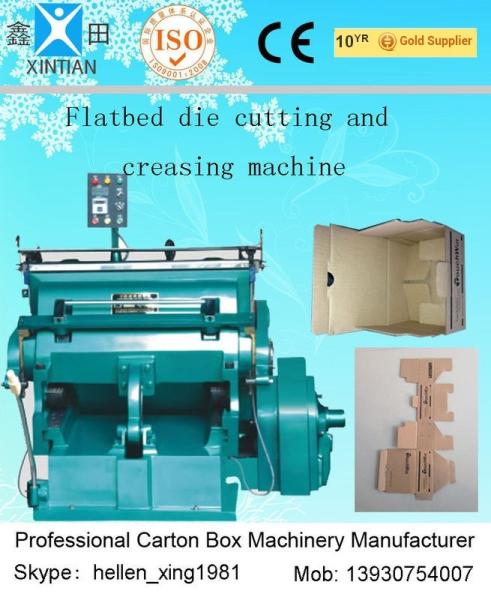

    Die-Cutting And Creasing Machine / Slotting Machinery Automatic Carton Machine

    Ask Lasest Price
    Brand Name : Xintian
    Certification : CE, ISO
    Delivery Time : 30-90 Days
    Payment Terms : T/T Advanced
    Model Number : PYQ
    • Product Details
    • Company Profile

    Die-Cutting And Creasing Machine / Slotting Machinery Automatic Carton Machine

    Die-Cutting And Creasing Machine / Slotting Machinery Automatic Carton Machine


    Description:


    1, Special equipment applying to die-cutting of advanced colored boxes made of paper.The machine combines several advantages over many other die-cutters both at home and abroad.

    2, Gripper bars with high intensity are applicable to all kinds of cardboard,paperboard and corrugated paper. Frontal,back and side registration mechanism ensure great precision of die-cutting.

    3, Other parts are adopted such as intermittent mechanism with high precision,air clutch,pneumatic locking mechanism,programmable controller and man-machine interface.The interface can display various digital information of machine such as working speed,amount of paper processed,total running time,etc.It is easy to eliminate troubles according to the display of trouble shooting.

    4, Transducer is adopted to control the main motor in achieving stepless speed variation.The machine has a lot of sensors and safe-ensuring devices to guarantee the safety of operator and environment.Pressure is easy to be adjusted.It can also realize die cutting without clipper margin.All these performances make the machine prominent in high quality and low price among similar products.


    Technical parameter:


    Model

    Inner chase size

    speed

    Max.embossing length

    Motor power

    Machine weight

    Overall dimensions

    ML750

    750*520mm

    25±3

    <15mm

    2.2kw

    1800kg

    1300*1300*1700mm

    ML930

    930*660mm

    20±3

    <25mm

    3.0kw

    3000kg

    1780*1590*1450mm

    ML-1100

    1100*800mm

    20±2

    <32mm

    5.5kw

    4500kg

    1800*1900*1480mm

    ML-1200

    1200*820mm

    20±2

    <35mm

    5.5kw

    4900kg

    1800*2000*1520mm

    ML-1300

    1300*920mm

    18±2

    <40mm

    7.5kw

    5600kg

    1800*2120*1600mm

    ML-1400

    1400*1000mm

    18±2

    <40mm

    7.5kw

    6500kg

    1800*2220*1650mm

    ML-1500

    1500*1050mm

    18±2

    <50mm

    7.5kw

    7500kg

    1800*2300*1700mm

    ML-1600

    1600*1150mm

    18±2

    <50mm

    7.5kw

    8500kg

    1800*2420*1750mm
