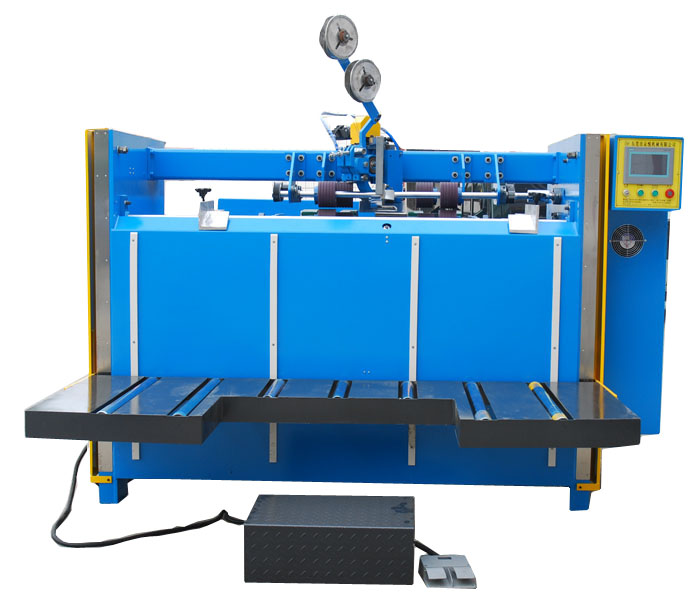

    Automatic Counting Paper Feeding Carton Box Packaging Machine , Single / Double Nail

    Ask Lasest Price
    Brand Name : Xintian
    Certification : CE ISO9001:2000
    Delivery Time : 30-90 days
    Payment Terms : TT,L/C
    Supply Ability : 2 sets per month
    Model Number : SBD
    • Product Details
    • Company Profile

    Automatic Counting Paper Feeding Carton Box Packaging Machine , Single / Double Nail

    Automatic Counting Paper Feeding Carton Box Packaging Machine , Single / Double Nail


    Use and characteristics:


    1. It can nail single nail, double nail, strengthen nail completed in one-time, can be suitable for different kinds of customer requirements of nails.

    2. It can be changed size quickly in one minute, operate easily and do not need any experience.

    3. Paper feeding section can automatic count and send after the bundle into the bundle.

    4. Its main-machine interface is controlled by very convenient operation.

    5. Back-automatic counting. The finished products done can be sent to the end of conveyor by setting the number (1-99).

    6. Semi-finished products nailing to the finished products displayed only need two operators. This can operate simply and reduce wages.


    Main technological parameter:


    Brand

    Sincerity

    Machine speed

    400nails/min

    Number of nails

    1-99nails

    Nailing from

    30-120mm(can be arbitrarily adjusted on the touch screen)

    Total horsepower

    6HP

    Number of nails

    Single nail/double nail/strengthen nail(can be completed in one-time)

    Machine weight

    2000KG

    Minimum paper size

    300*606mm

    For cardboard

    3-layer/5-layer Corrugated board

    Maximum paper size

    1515*2460mm

    Wire size

    17#Flat Yarn(2.0*0.75)

    The pushing stack height of feed paper table

    900mm
