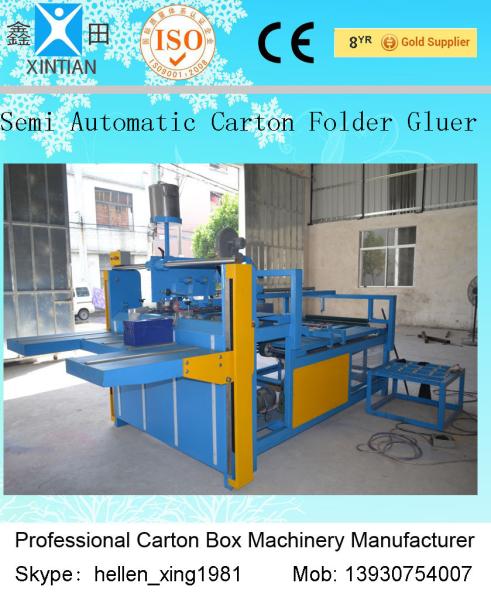

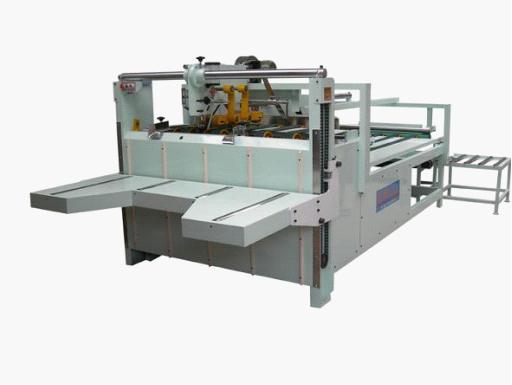

    Semi Automatic Folder Gluer Machine For Corrugated Paper / Carton Box Making

    Ask Lasest Price
    Brand Name : Xintian
    Certification : CE, ISO
    Delivery Time : 30-90 Days
    Payment Terms : T/T Advanced
    Model Number : BZX
    • Product Details
    • Company Profile

    Semi Automatic Folder Gluer Machine For Corrugated Paper / Carton Box Making

    Semi Automatic Folder Gluer Machine For Corrugated Paper / Carton Box Making


    Features:


    This machine is suitable for folding and gluing all the kinds of paperboard, easy operation, no training is necessary, one minute quick order change, carton gluer min size 260mm, it is the best choice for carton making factory.

    This type of Semi-Auto Gluer composes a main form and two small conveyers. Main form including: form, up and down Working Table, Forepart feeding section, forepart proofread section, middle transportation section, Middle press section, side carton delivery section, and electric control system.

    This machine adopts famouse brand electric spare parts , Siemens electric, Omron photoelectric switch Japan TOKY counter ,Taiwan MINGWEI electric power supply. Gluer head adopts special alloy material anti-acidity and anti-alkalescency, to keeping the gluer head for long life. Main motor adopts TaiWan Chengpang motor.


    Main Technical Parameter:


    Model

    BZX2800

    Max.size(L+W)×2

    2800mm

    Min.size(L+W)×2

    340mm

    Max.size(W+H)×2

    1515mm

    Min.size(W+H)×2

    260mm

    High of feeder

    1000mm

    Power

    4kw

    Machine length

    5300mm

    Machine weight

    2150kg

    Machine speed

    60m/min
